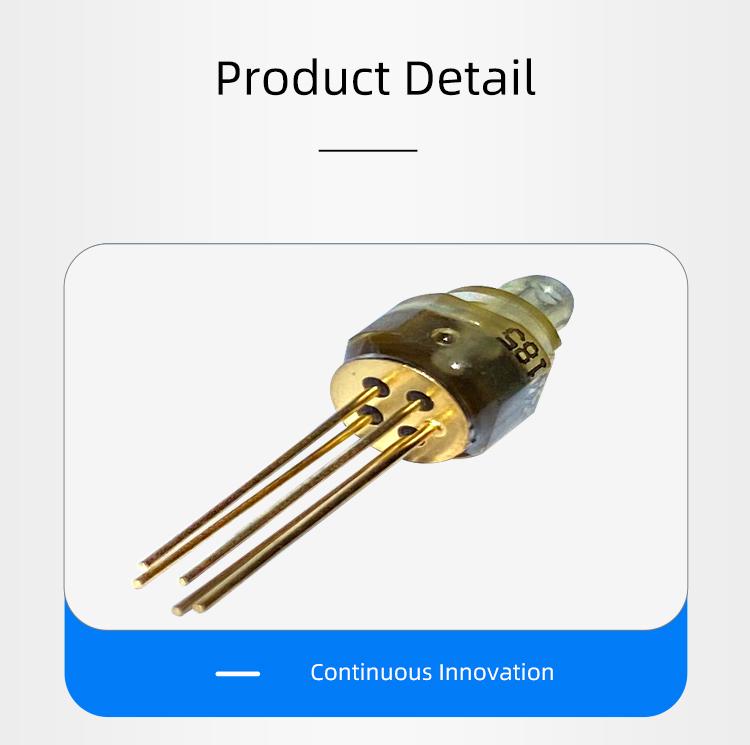

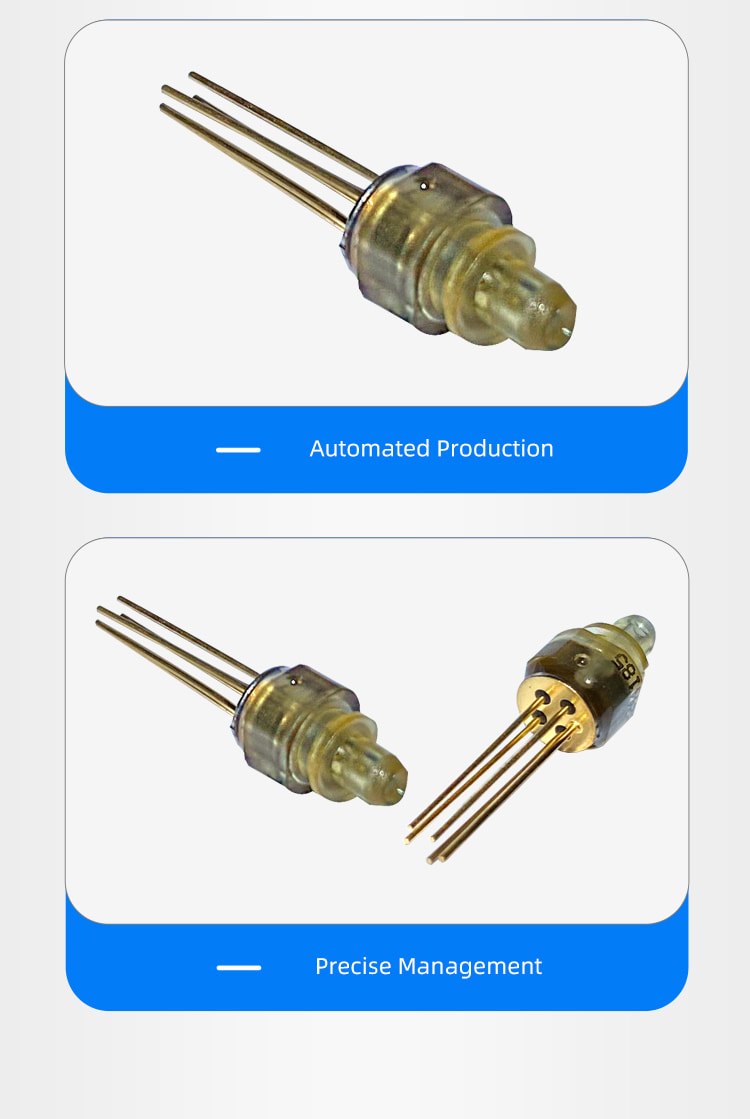

ROSA-LC 1.25Gbps 850nm Receiver Optical Subassembly

ROSA-LC 1.25Gbps 850nm Receiver Optical Subassembly

Features:

● Light Wavelength: 850nm

● Bit Rate: 1.25Gbps

● High Sensitivity

● Differential Output

● LC Receptacle

Applications:

● Digital Optical Communication

Wavelength :
850nm
Rate :
1.25G
Power :
0.5mW

Inquiry now Download

Product Details

ROSA-LC 1.25Gbps 850nm

Features:

● Light Wavelength: 850nm

● Bit Rate: 1.25Gbps

● High Sensitivity

● Differential Output

● LC Receptacle

Applications:

● Digital Optical Communication

Specifications:

Absolute Maximum Ratings

Parameter	Symbol	Min	Max.	Unit
Input optical power	Pin	--	3	dBm
Operating Temperature	Top	-40	85	℃
Storage Temperature	Tstg	-40	85	℃
Lead Solder Temperature	--	--	260	℃
Lead Soldering Time	--	--	10	s

Specifications (T=25°C, unless otherwise noted)

Parameter	Symbol	Test Conditions	Min.	Typ.	Max.	Unit
Supply Voltage	Vcc	--	3.0	3.3	3.6	V
Supply Current	Icc	Vcc=3.3V	23	25	35	mA
Operating Wavelength	λc	Vcc=3.3V	830	850	860	nm
RSSI Offset Current	Id	Vcc=3.3V	--	--	100	nA
Overload	OL	Vcc=3.3V	0	--	--	dBm
Sensitivity	Sen	1.25Gbps,PRBS7,850nm, ER=10dB,BER=10E-10	--	-26	-23	dBm
