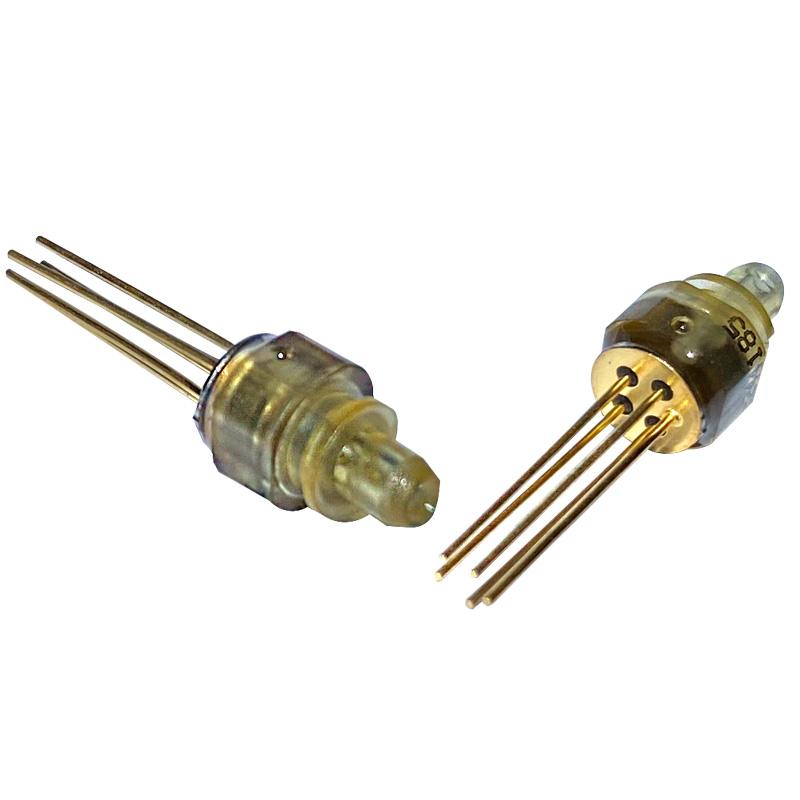

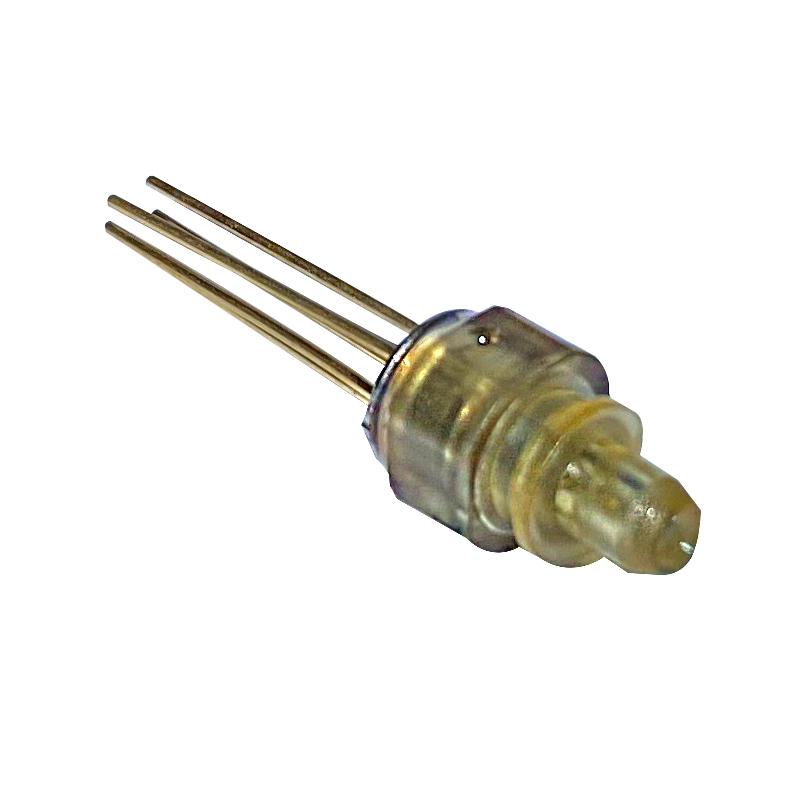

TOSA-LC 1.25Gbps 850nm Transmitter Optical Subassembly

TOSA-LC 1.25Gbps 850nm Transmitter Optical Subassembly

Features：

● Light Wavelength: 850nm

● Bit Rate: 1.25Gbps

● Low Threshold Current

● LC Receptacle

Applications：

● Digital Optical Communication

Wavelength :
850nm
Rate :
1.25G
Power :
0.5

Inquiry now Download

Product Details

TOSA-LC 1.25Gbps 850nm

Features：

● Light Wavelength: 850nm

● Bit Rate: 1.25Gbps

● Low Threshold Current

● LC Receptacle

Applications：

● Digital Optical Communication

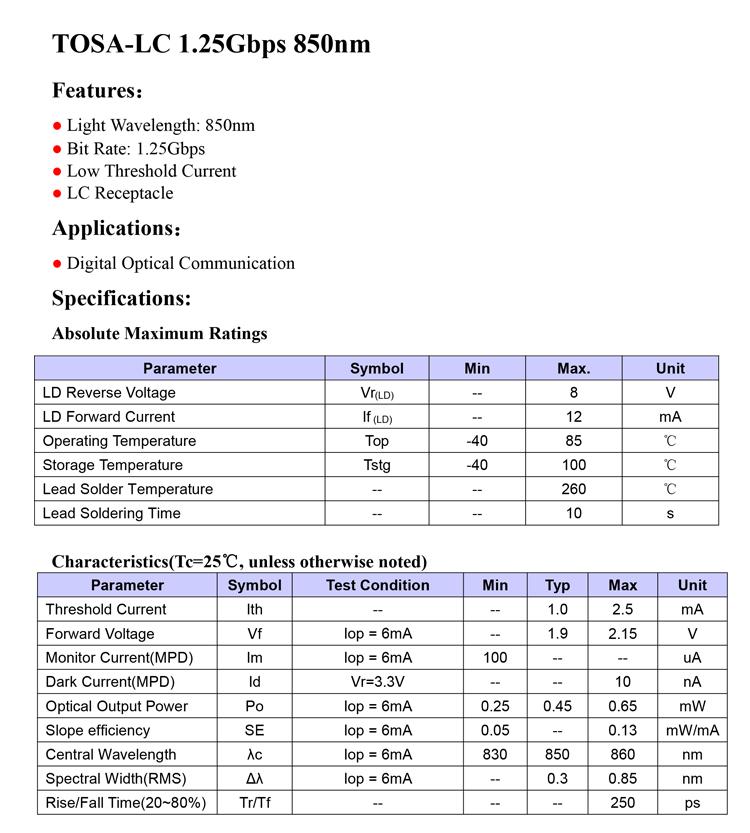

Specifications:

Absolute Maximum Ratings

Parameter	Symbol	Min	Max.	Unit
LD Reverse Voltage	Vr(LD)	--	8	V
LD Forward Current	If (LD)	--	12	mA
Operating Temperature	Top	-40	85	℃
Storage Temperature	Tstg	-40	100	℃
Lead Solder Temperature	--	--	260	℃
Lead Soldering Time	--	--	10	s

Characteristics(Tc=25℃, unless otherwise noted)

Parameter	Symbol	Test Condition	Min	Typ	Max	Unit
Threshold Current	Ith	--	--	1.0	2.5	mA
Forward Voltage	Vf	Iop = 6mA	--	1.9	2.15	V
Monitor Current(MPD)	Im	Iop = 6mA	100	--	--	uA
Dark Current(MPD)	Id	Vr=3.3V	--	--	10	nA
Optical Output Power	Po	Iop = 6mA	0.25	0.45	0.65	mW
Slope efficiency	SE	Iop = 6mA	0.05	--	0.13	mW/mA
Central Wavelength	λc	Iop = 6mA	830	850	860	nm
Spectral Width(RMS)	Δλ	Iop = 6mA	--	0.3	0.85	nm
Rise/Fall Time(20~80%)	Tr/Tf	--	--	--	250	ps

Laser radar diode lidar diode 1550nm 2.5G DFB Seed source TOSA diode package semiconductor laser radar sensor Laser radar diode Application

Xiamen San-U Optronics Co., Ltd was established in 2001 year, which is a new high-tech enterprise

specializing in R&D and massproduction in highspeed semi-conductor Laser / detector , optical

components and module.San-U products are widely used incloud computing, HTTP,sensor detector

territory ,optical telecommunication,and so on.

San-U Company established “Xiamen University San-U Optronics Technology R&D Center” and

“Xiamen Optical communicationcomponents test key lab” Successively based on Industry-University

Cooperation， San-U R&D team burden more t han 20projects of National,Province and city class

innovation fund and technology aid, which possesses 4 items innovation patents andmore than 20

realistic new type patents. The results and findings of R&D by San-U are all turned into mass

production and becomethe market hot points products. San-U is awarded as ‘Xiamen Leading

enterprise as technology small giants’ , ‘Fujian Innovation enterprise’. Nationa l Innovation Fund

Project - - 10G Semi-conductor Laser and components has also been verified. San-U company

has priority to enter Chinese domestic market by replace import products. San-U has already

established Automatic Chip Auto assembly line, components auto coupling production line and

has already access mass production. San-U production line has already realize the information

and intelligence, which is atleading position within domestic. Optical components automatic mass

production technology development project has already gained the National Innovation Fund’s

major projects support. In optical communication industry transformation and upgrading to

automation scale mass production aspect has demonstrative effect.
